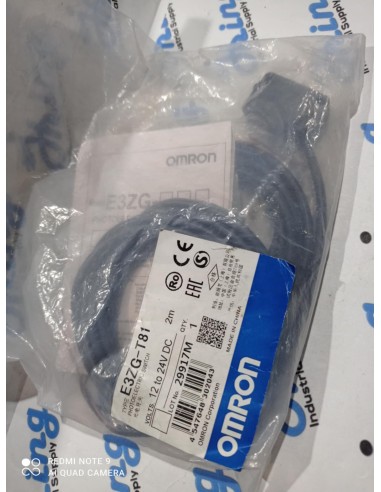

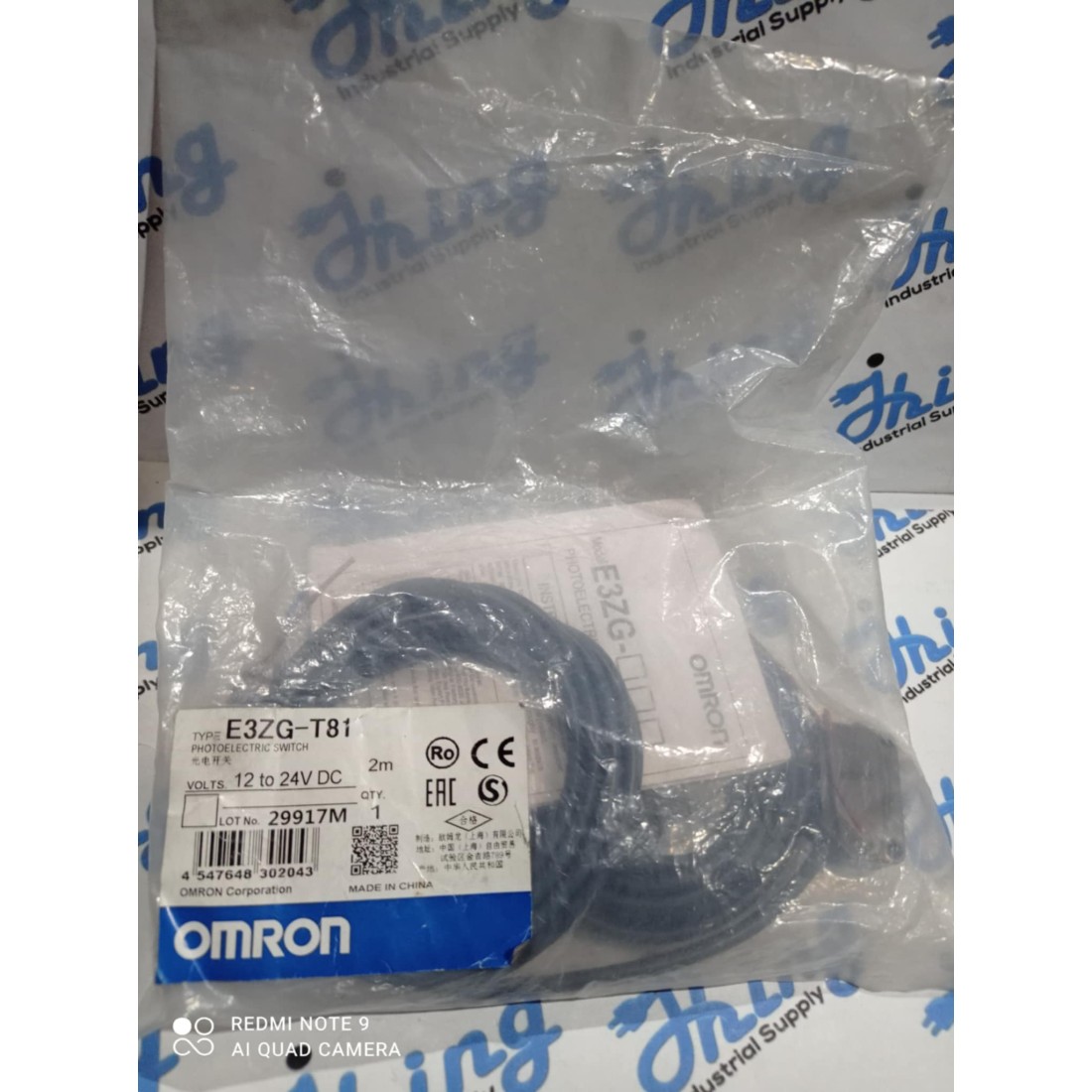

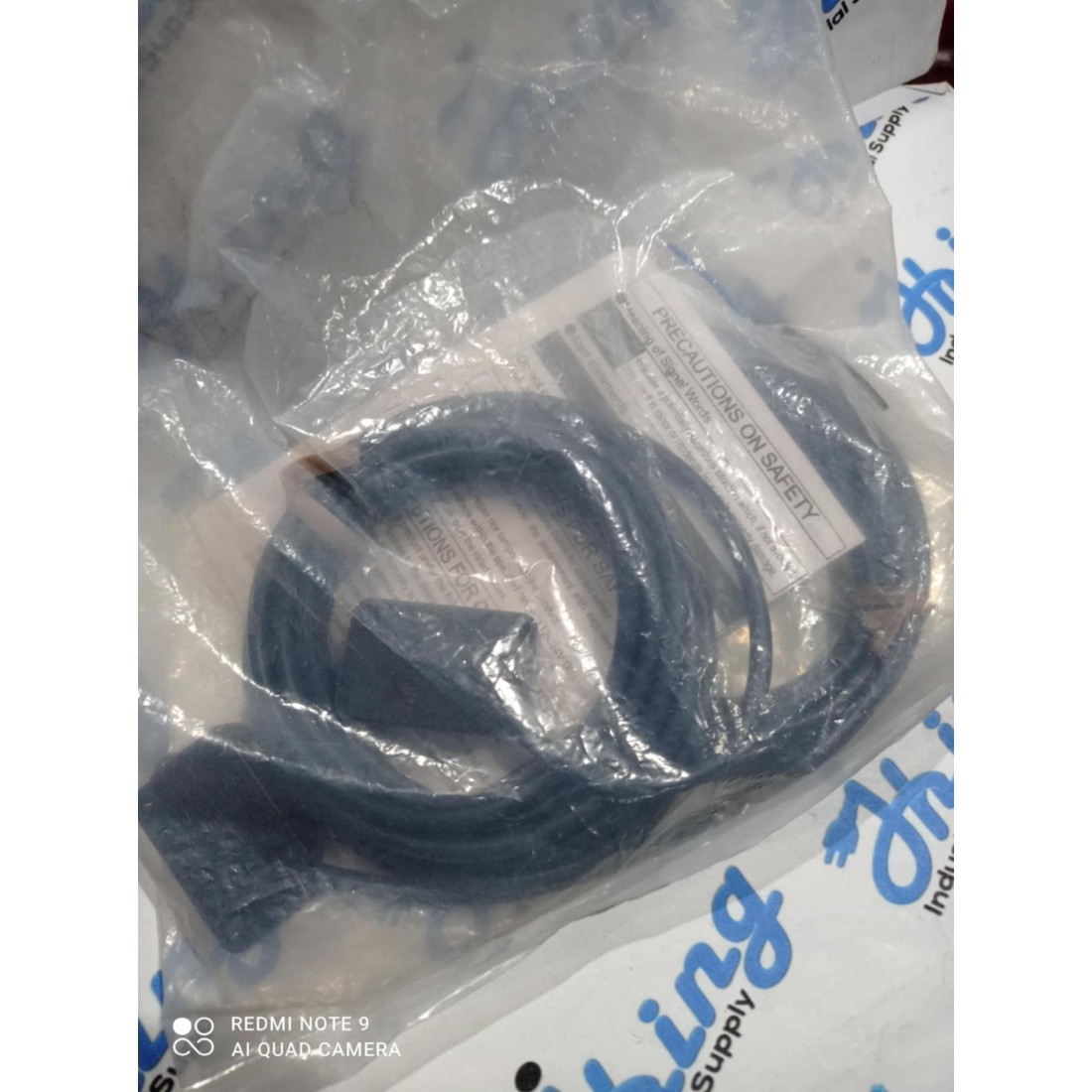

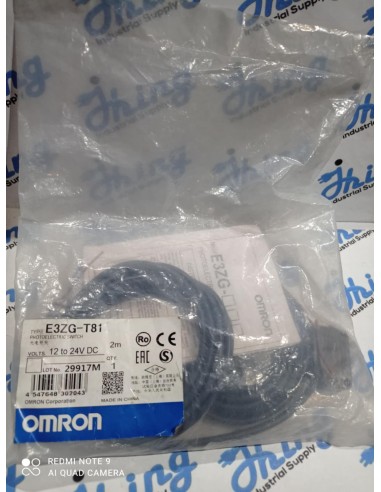

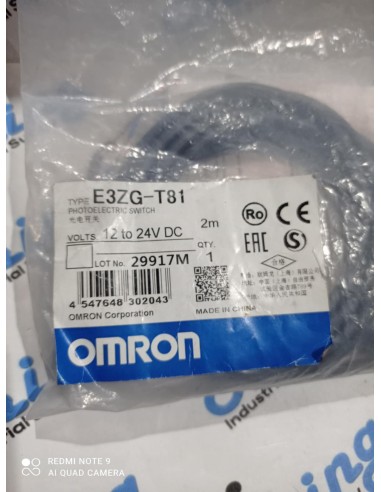

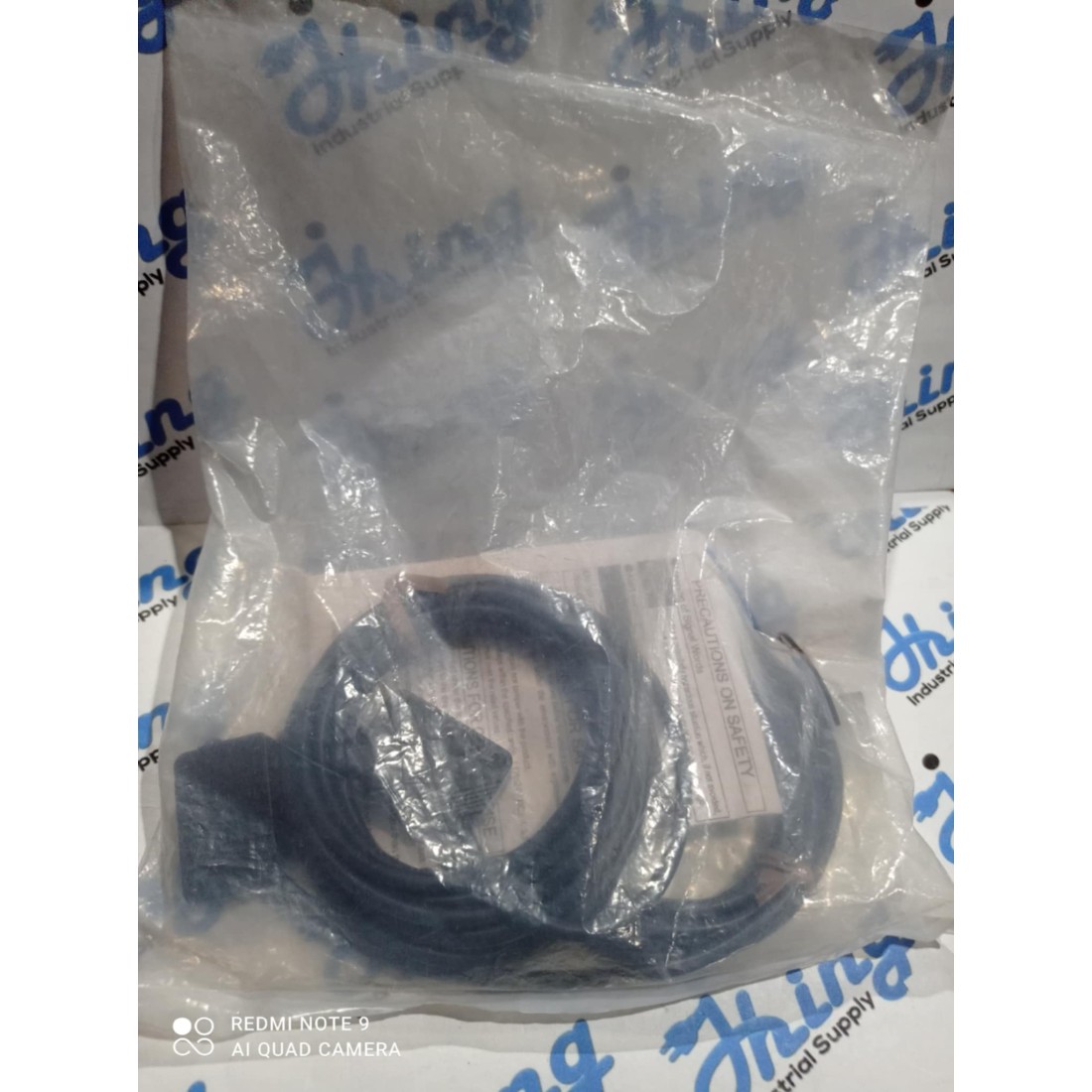

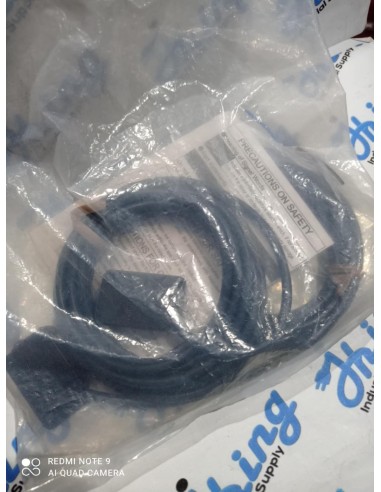

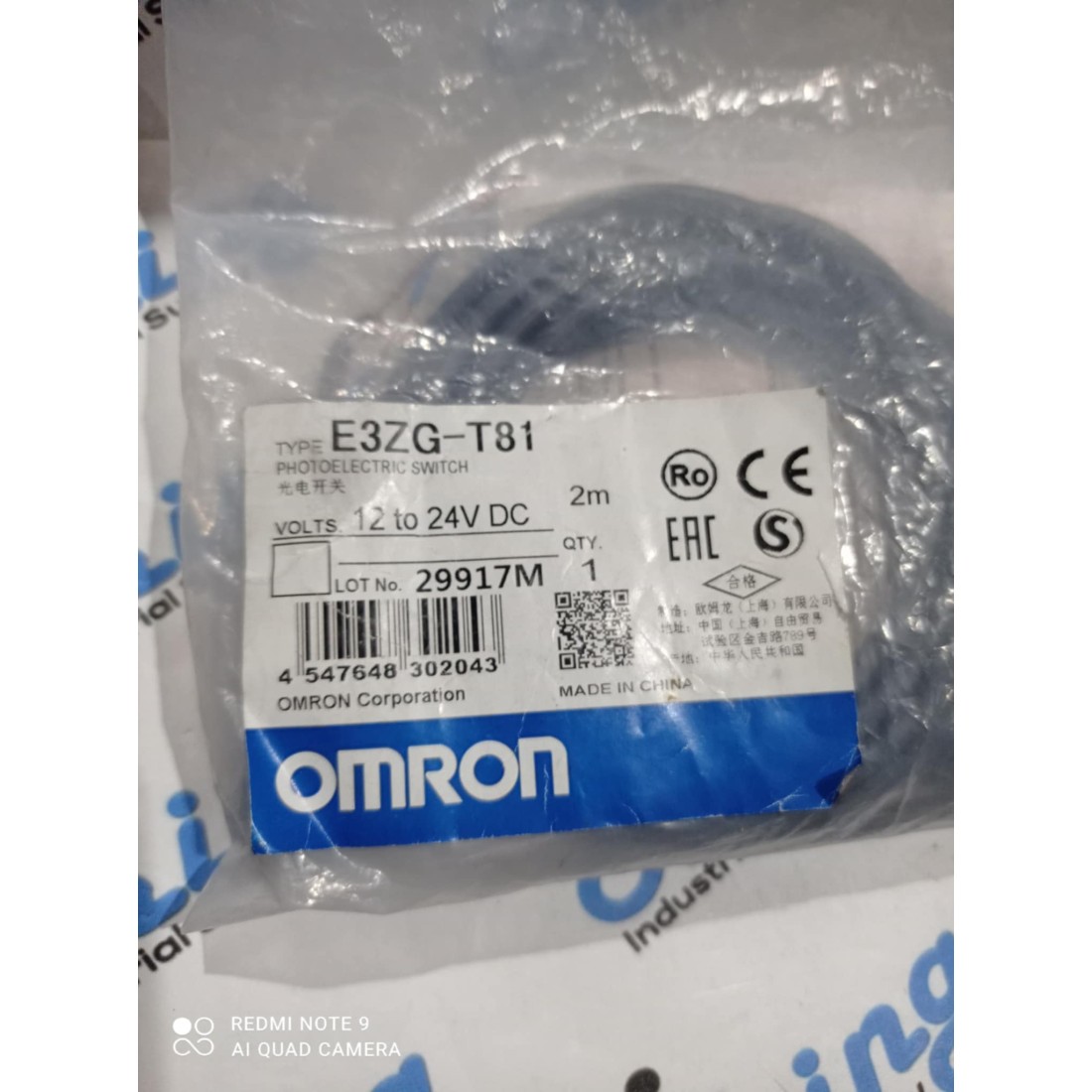

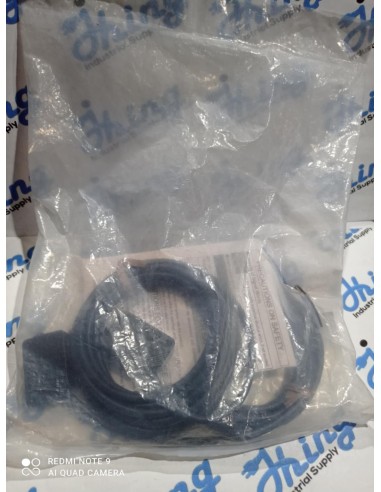

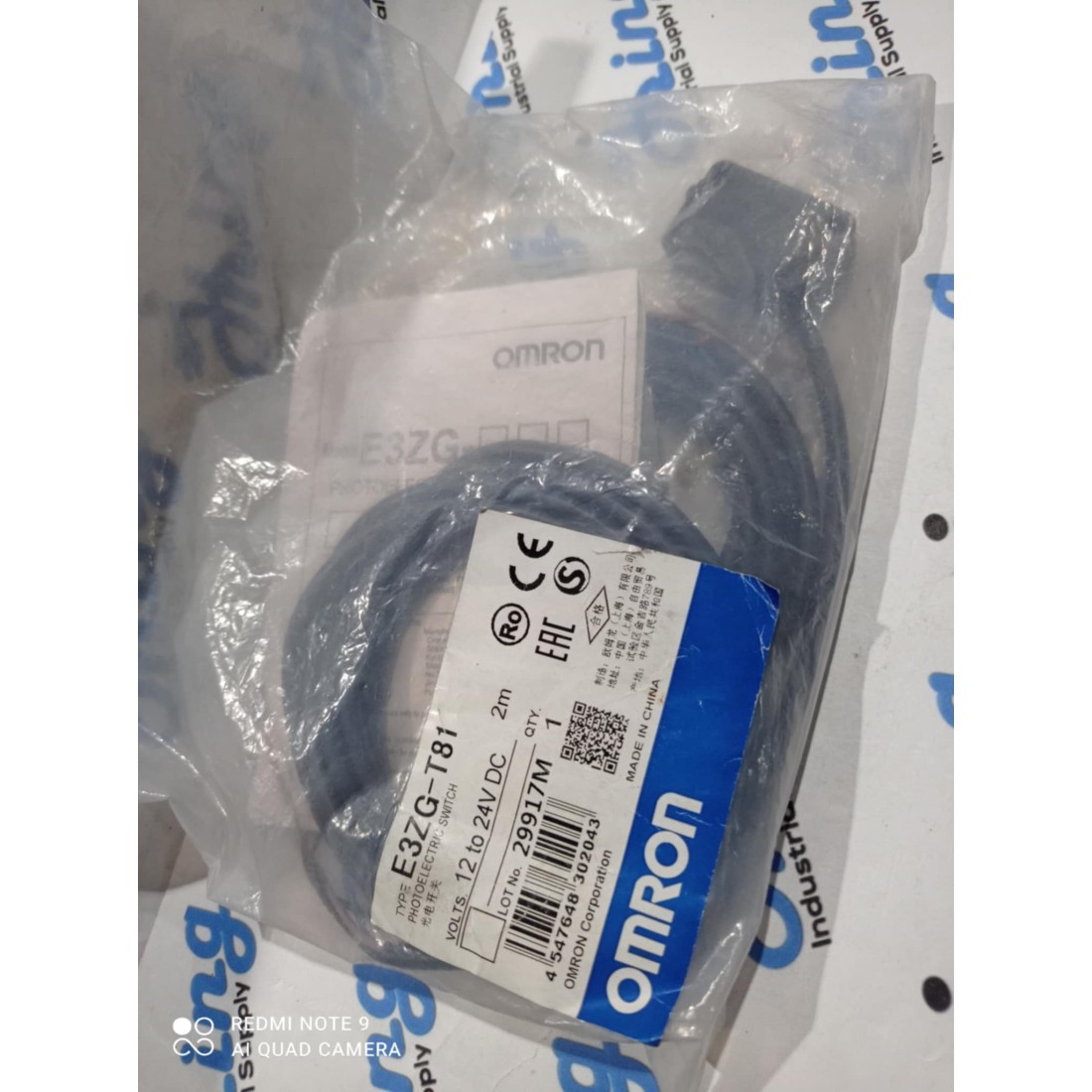

Omron E3ZG-T81 Photoelectric Switch Specifications:
- Bore Axis Offset: Within ±2.5° max for quick visual frame alignment.
- maximum Sensing Distance: 15 meters (49 feet).
- Minimum Object Size: 12 mm diameter required to break beam.
- Beam Cone Angle: Tight path between 3° and 15°.
- Light Wavelength: 870 nm Infrared (invisible to human eye).
- PNP Voltage Drop: 1.0V max (<10mA) / 2.0V max (<100mA).
- Glare Blindness Limit: 3,000 lux (lamps) / 10,000 lux (sunlight).
- Dielectric Insulation: 1,000 VAC for 1 minute (wires-to-case).
- Power Draw Breakdown: Emitter 15 mA max / Receiver 20 mA max.
- Vibration Resistance: 10–55 Hz at 1.5 mm double amplitude.
- Shock G-Force Limit: 500 m/s² (~50G) across 3 axes.
