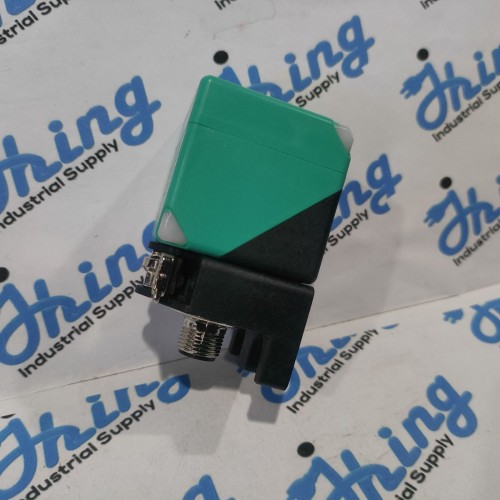

NBB20-L2-E2-V1 Pepperl Fuchs Inductive Sensor
NBB20-L2-E2-V1 Pepperl Fuchs Inductive Sensor
NBB20-L2-E2-V1 Pepperl Fuchs...
NBB20-L2-E2-V1 Pepperl Fuchs...

NBB20-L2-E2-V1 Pepperl Fuchs Inductive Sensor

Pepperl Fuchs NBB20-L2-E2-V1 Inductive Sensor Part: 187481, 10-30V, 20mm Range, PNP NO

₱2,800.00
Tax excluded

Description

Pepperl Fuchs NBB20-L2-E2-V1 Inductive Sensor Part: 187481.

General Parameters :

Switching element function : PNP NO

Setup : flush

Working Distance : 20mm

Output DC

Assured operating distance sa 0 ... 16.2 mm

Reduction factor rAl 0.33

Reduction factor rCu 0.31

Reduction factor r304 0.74

Reduction factor rBrass 0.41

Nominal ratings

Voltage UB 10 ... 30 V

Frequency Range f 0 ... 150 Hz

Hysteresis H typ. 5 %

Reverse polarity protection reverse polarity protected

Short-circuit protection pulsing

Voltage drop Ud ≤ 2 V

Operating current IL 0 ... 200 mA

Off-state current Ir 0 ... 0.5 mA typ. 0.1 µA at 25 °C

No-load supply current I0 ≤ 20 mA

Time delay before availability tv 80 ms

Operating voltage indicator LED, green

Switching state indicator LED, yellow

Ambient conditions

Ambient temperature -25 ... 85 °C (-13 ... 185 °F)

Storage temperature -40 ... 85 °C (-40 ... 185 °F)

Mechanical specifications

Connection type Connector M12 x 1 , 4-pin

Housing material PA

Sensing face PA

Degree of protection IP69K

Weight 130 g
