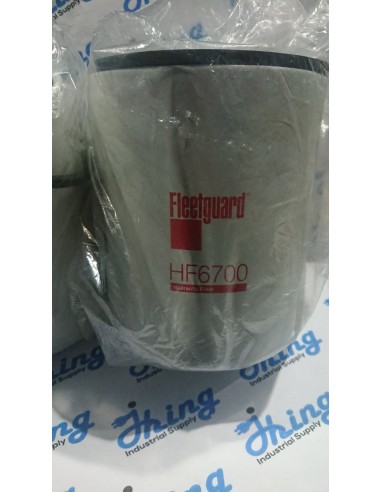

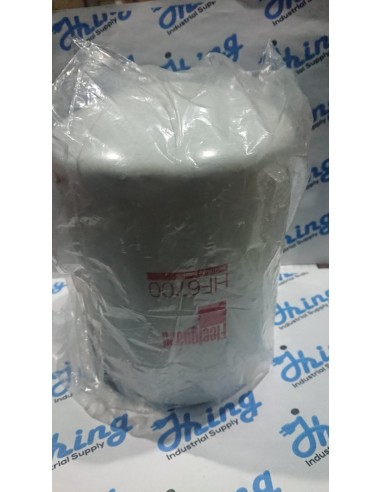

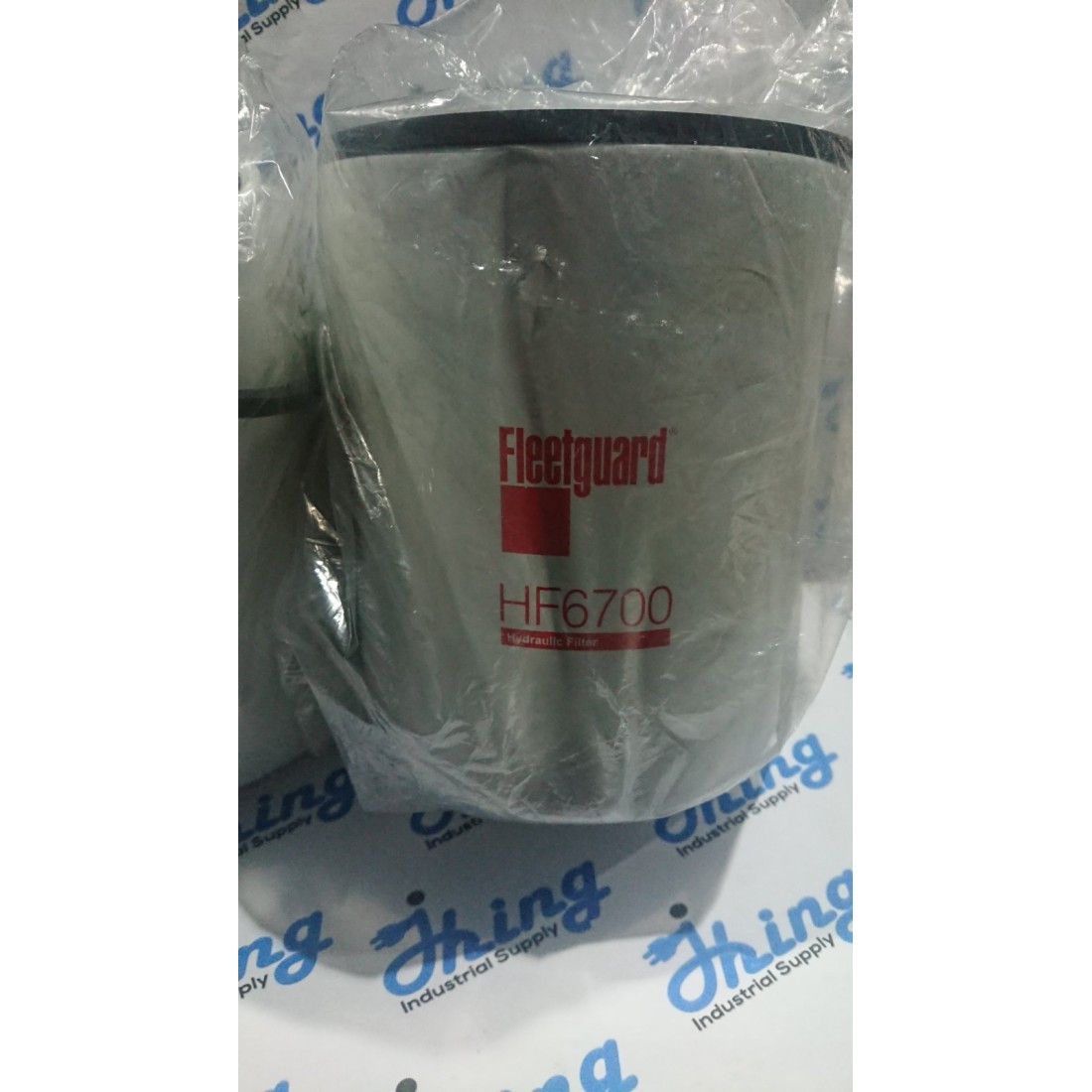

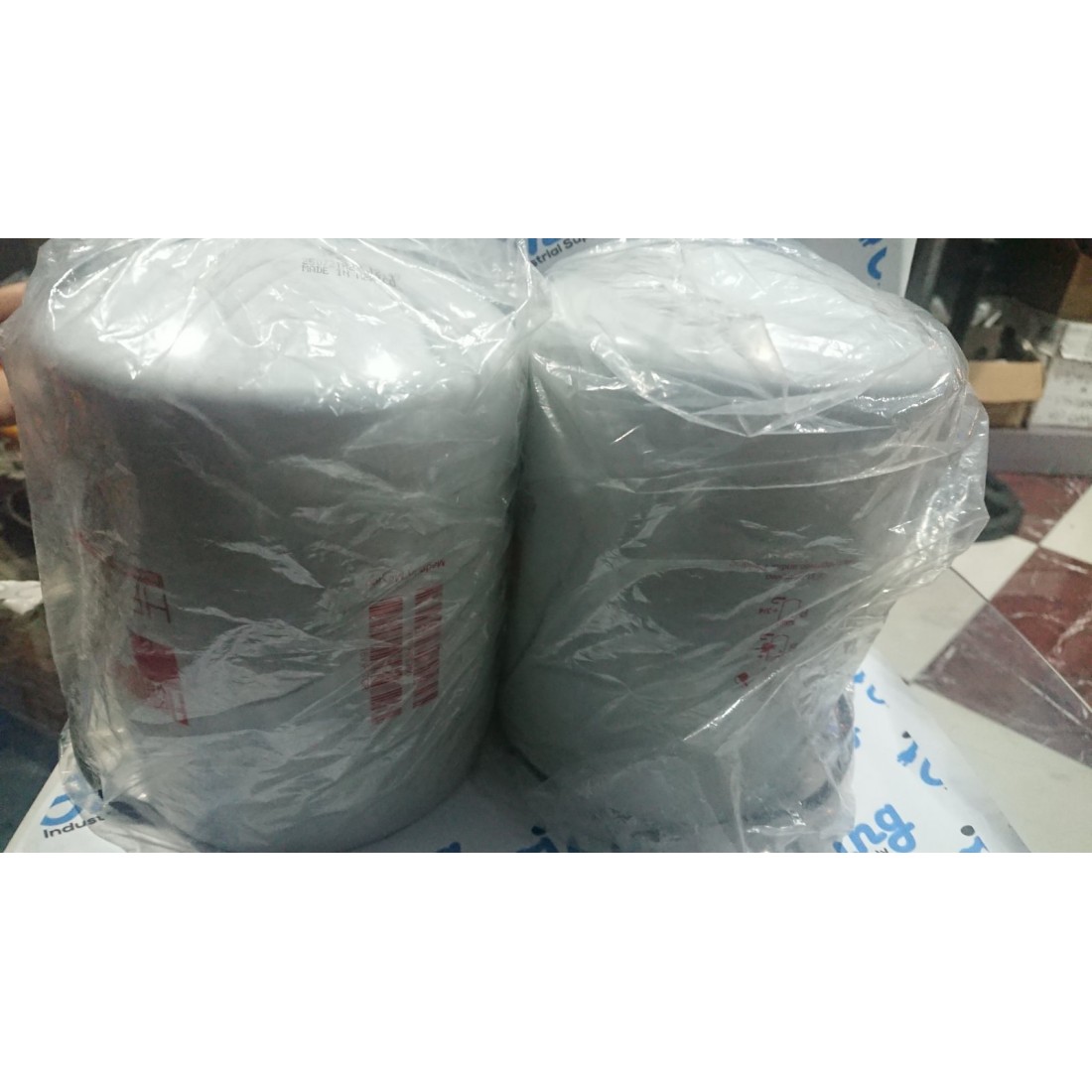

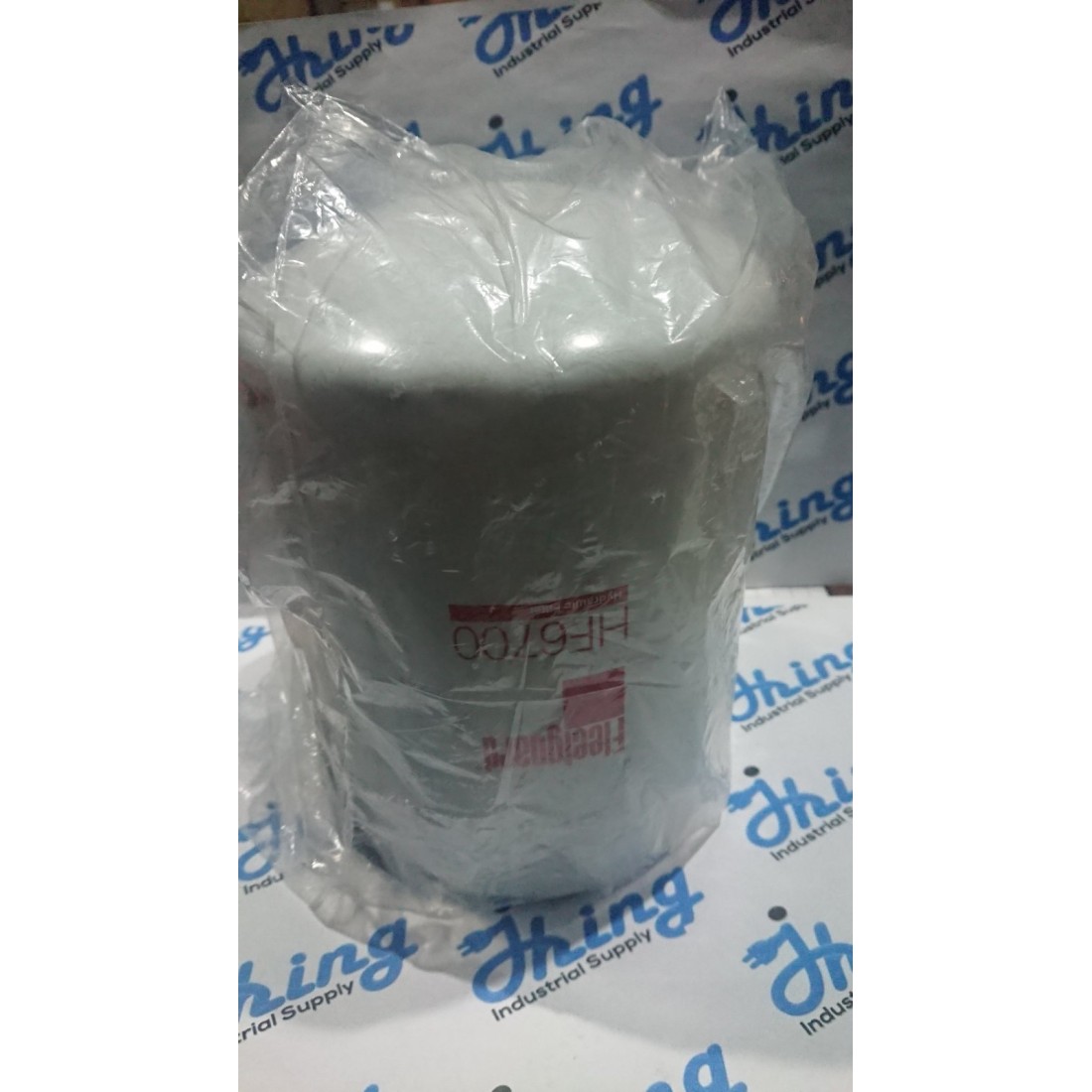

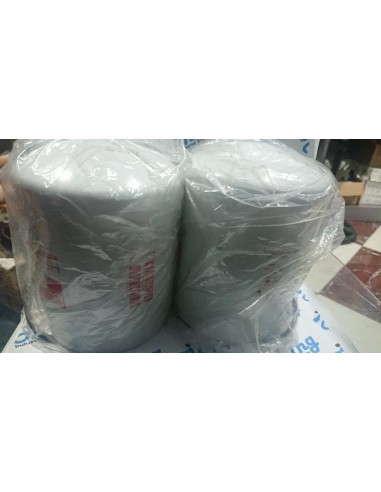

HF6700 Fleetguard Hydraulic Filter

FleetguaRd HF6700 Hydraulic Filter

HF6700 Hydraulic Filter Specifications:

Fractional Diameter: 5 1/8 inches (130.18 mm) total envelope width required.

Fractional Length: 6 ¾ inches (171.45 mm) from baseplate to canister dome.

Canister Seam Outer Diameter (Maximum Bulge): 128.60 mm (5 1/16 in). This represents the widest point of the crimped metal seam where the canister meets the base plate.

Gasket Track Outer Edge: 128.00 mm (5.04 in).

Gasket Track Inner Edge: 120.90 mm (4.76 in).

Actual Sealing Ring ID (Compressed Position): 114.00 mm to 120.00 mm variance range.

Gasket Thickness Profile: Standard 3.175 mm (1/8 in) compression seal.
