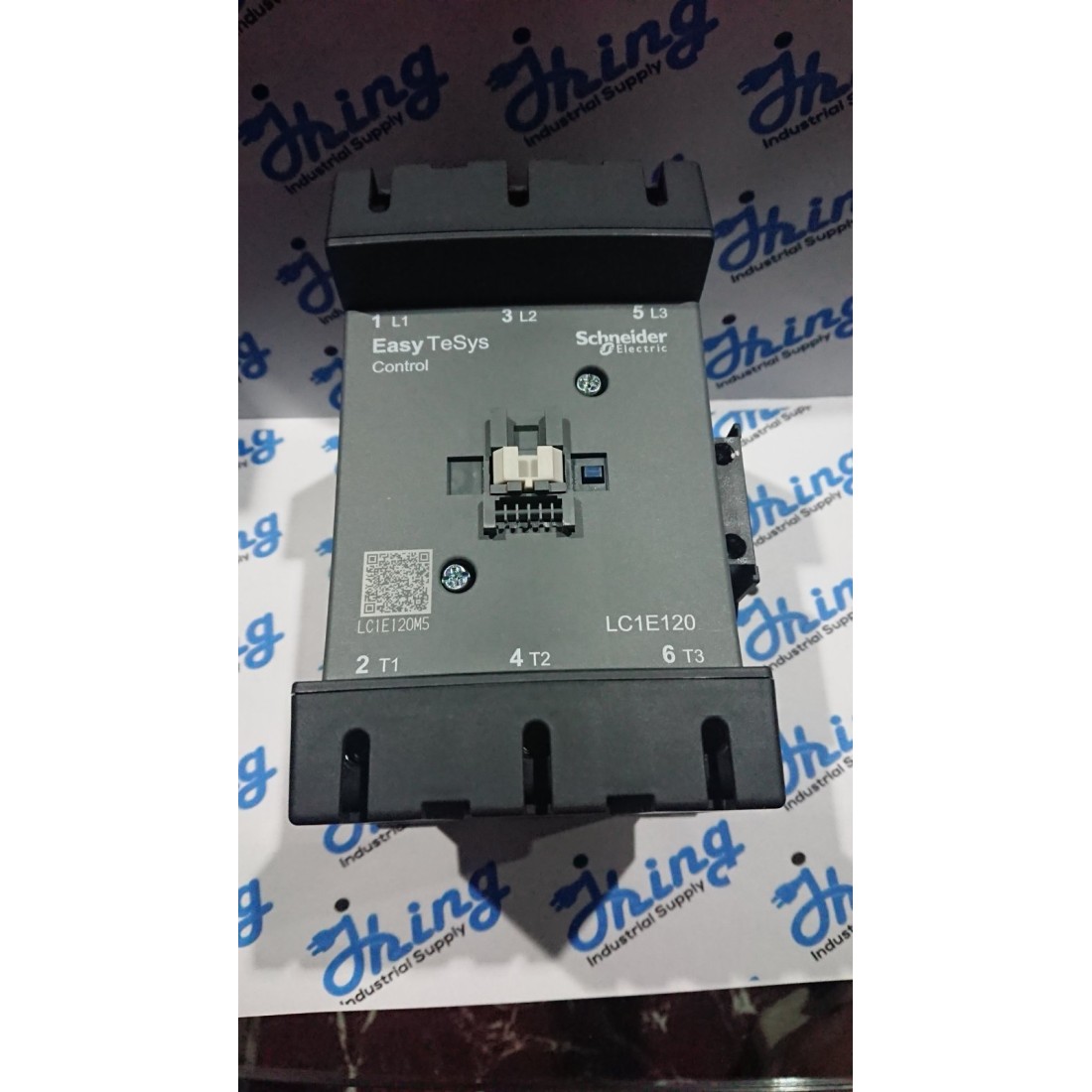

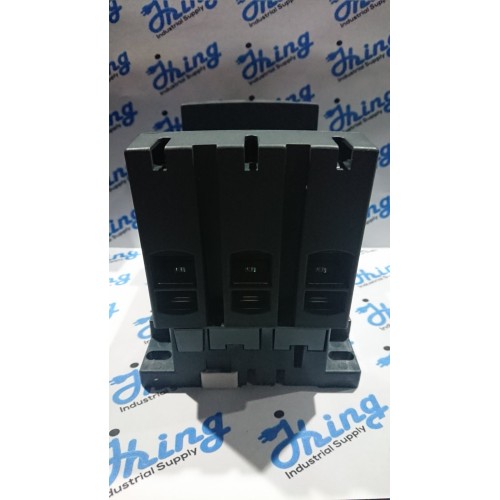

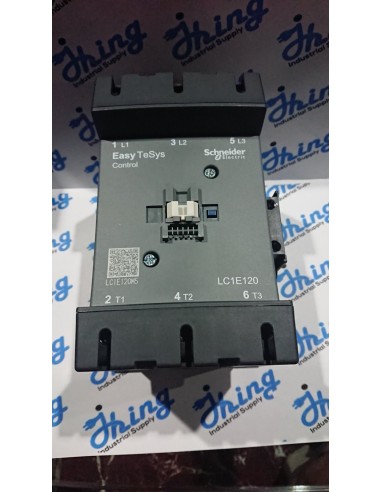

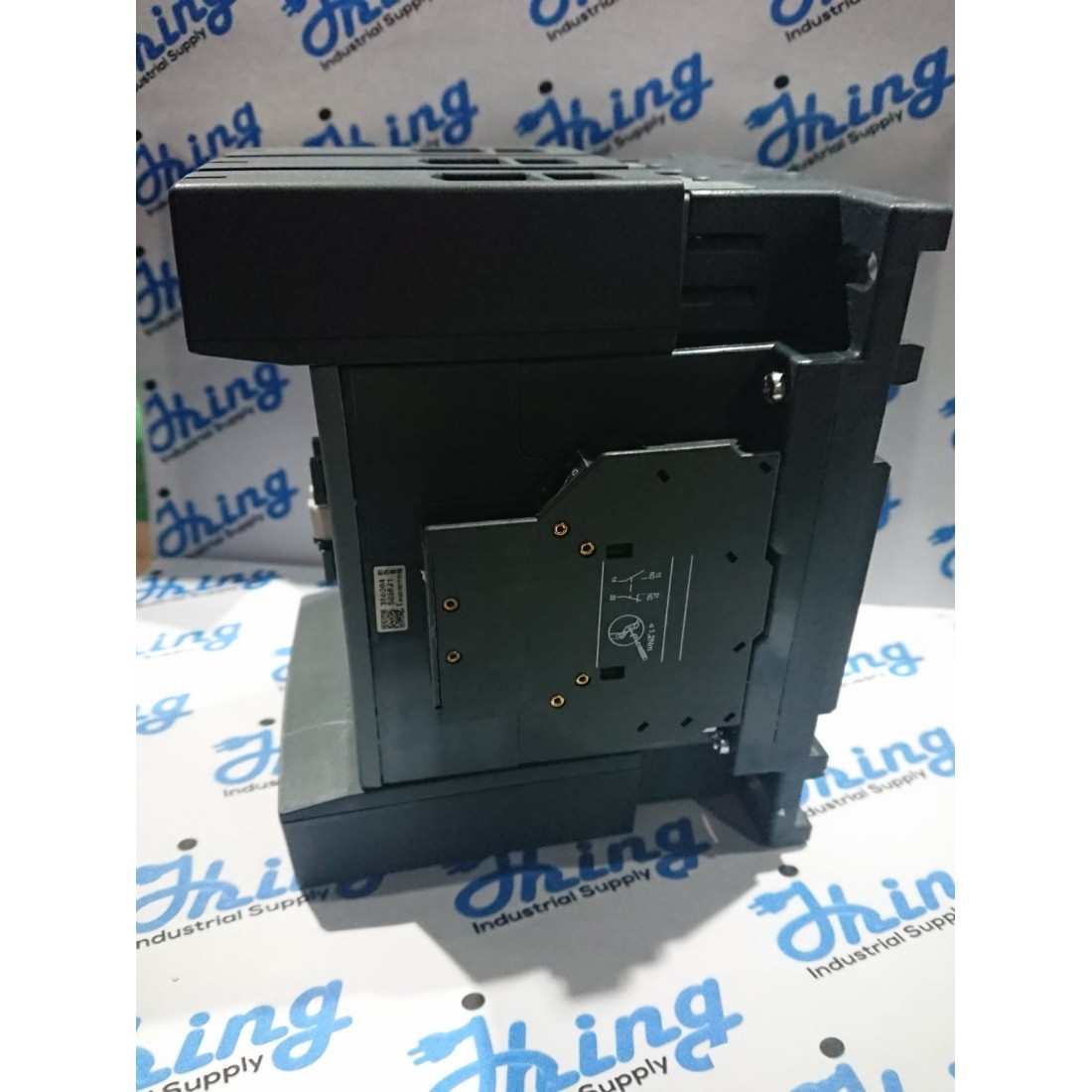

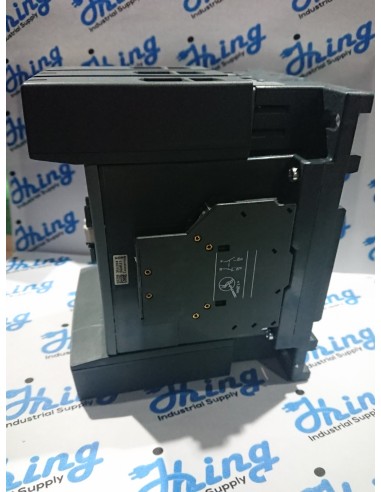

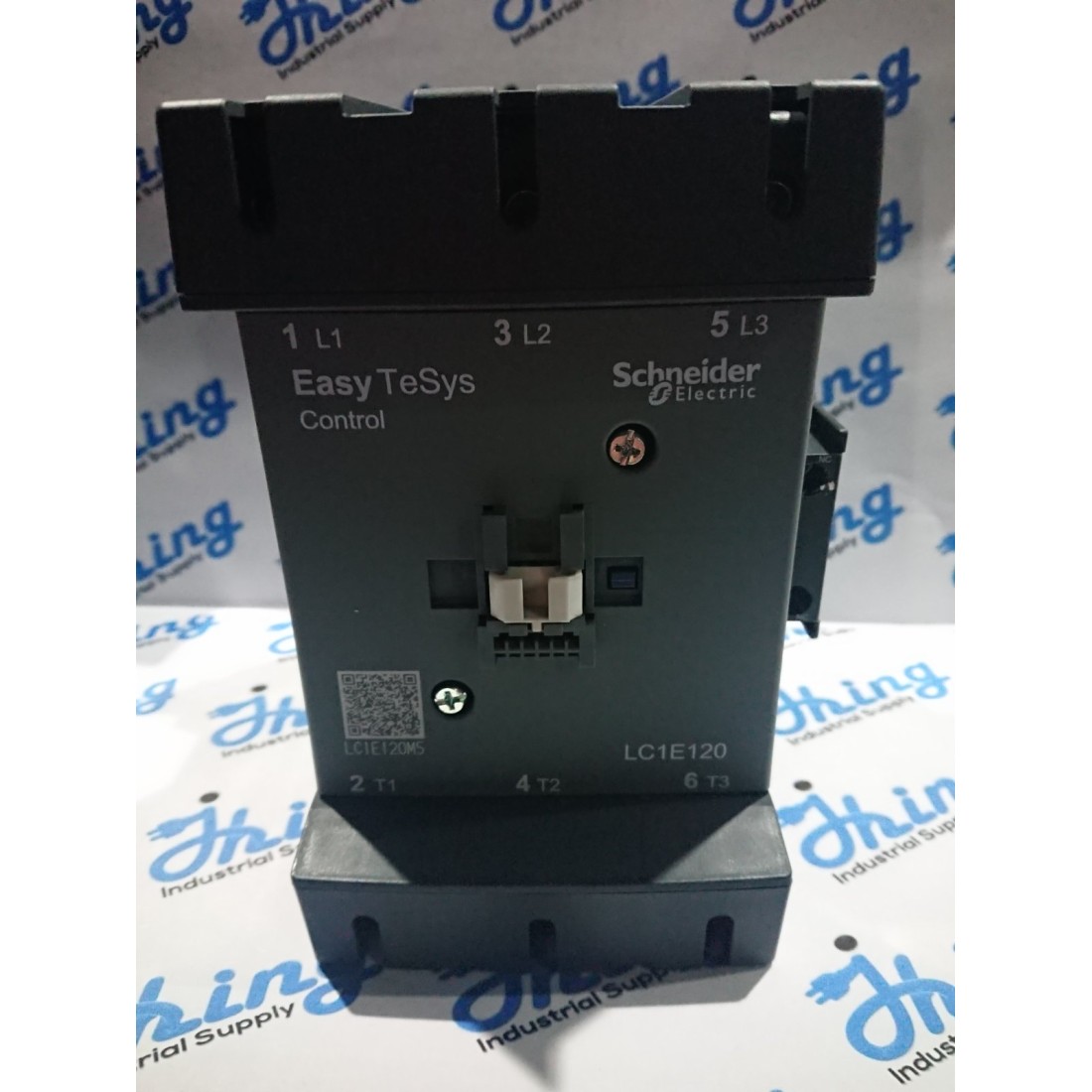

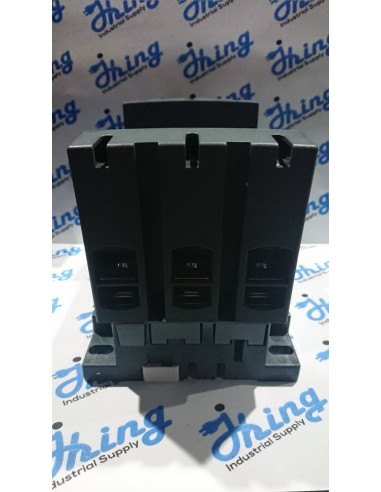

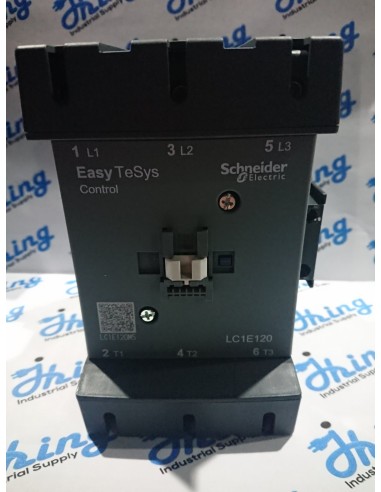

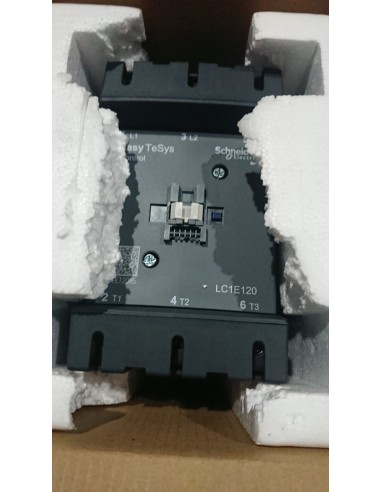

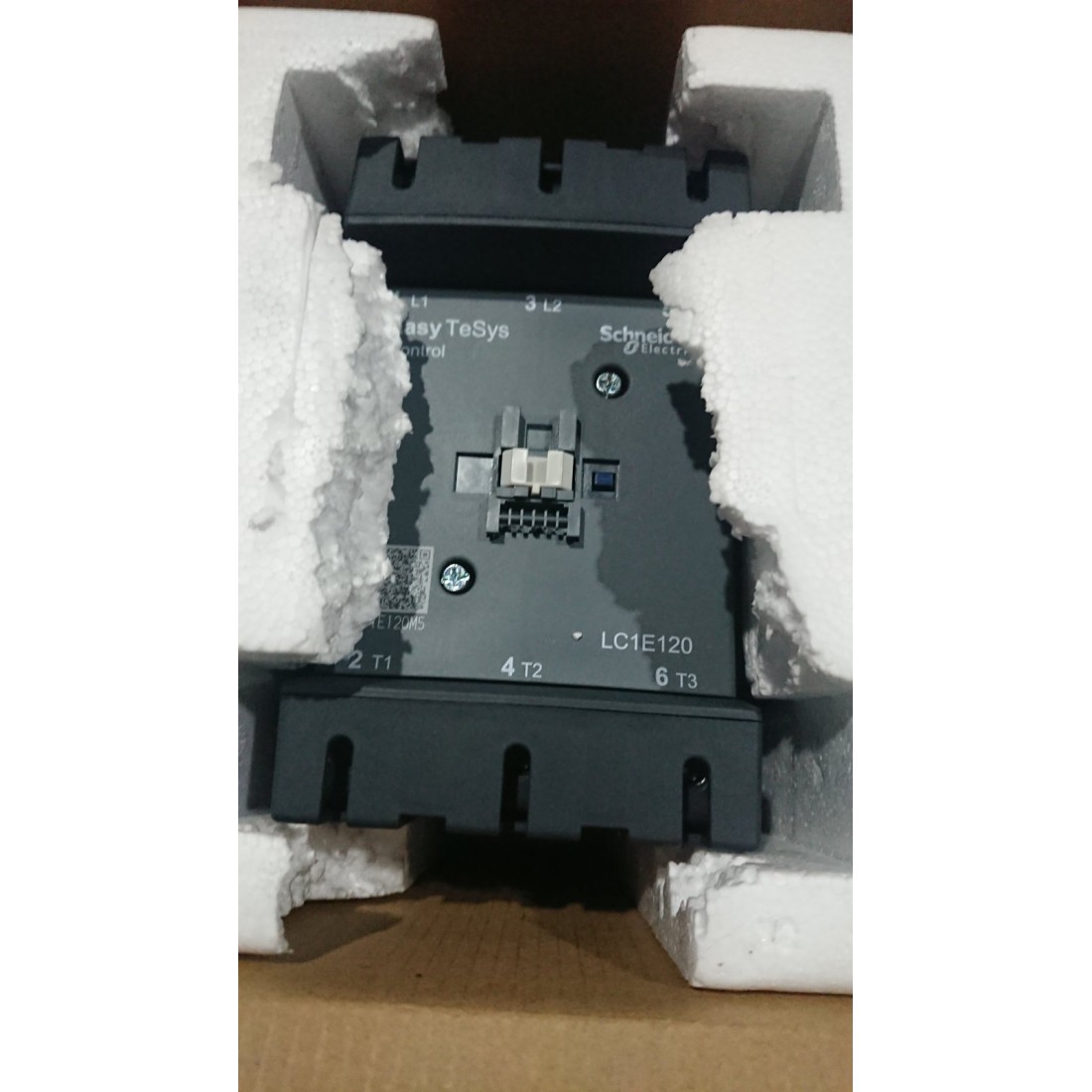

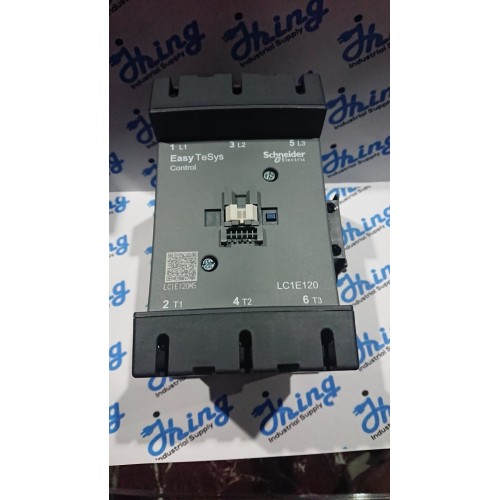

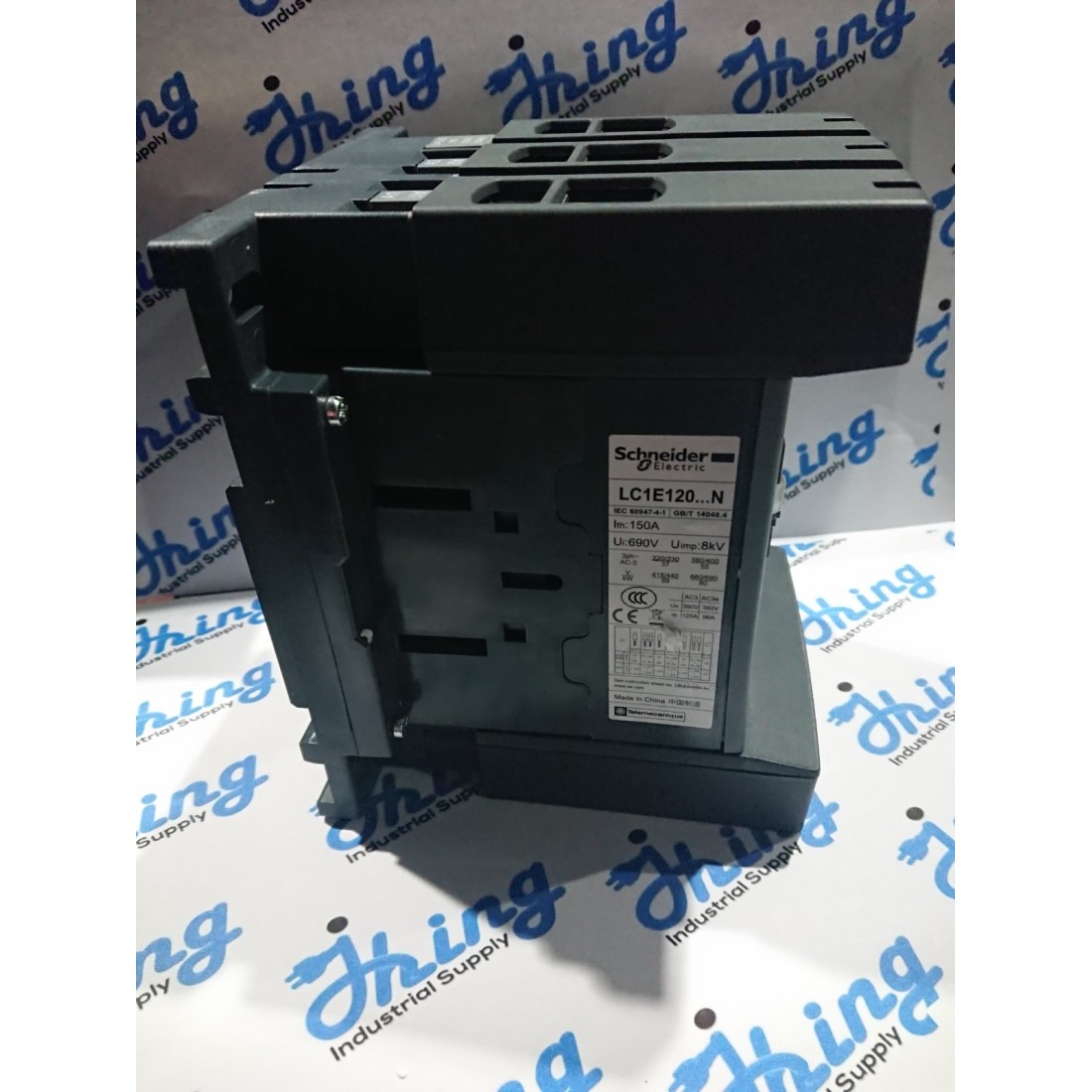

LC1E120M5N Schneider Contactor

LC1E120M5N Schneider Contactor Specifications:

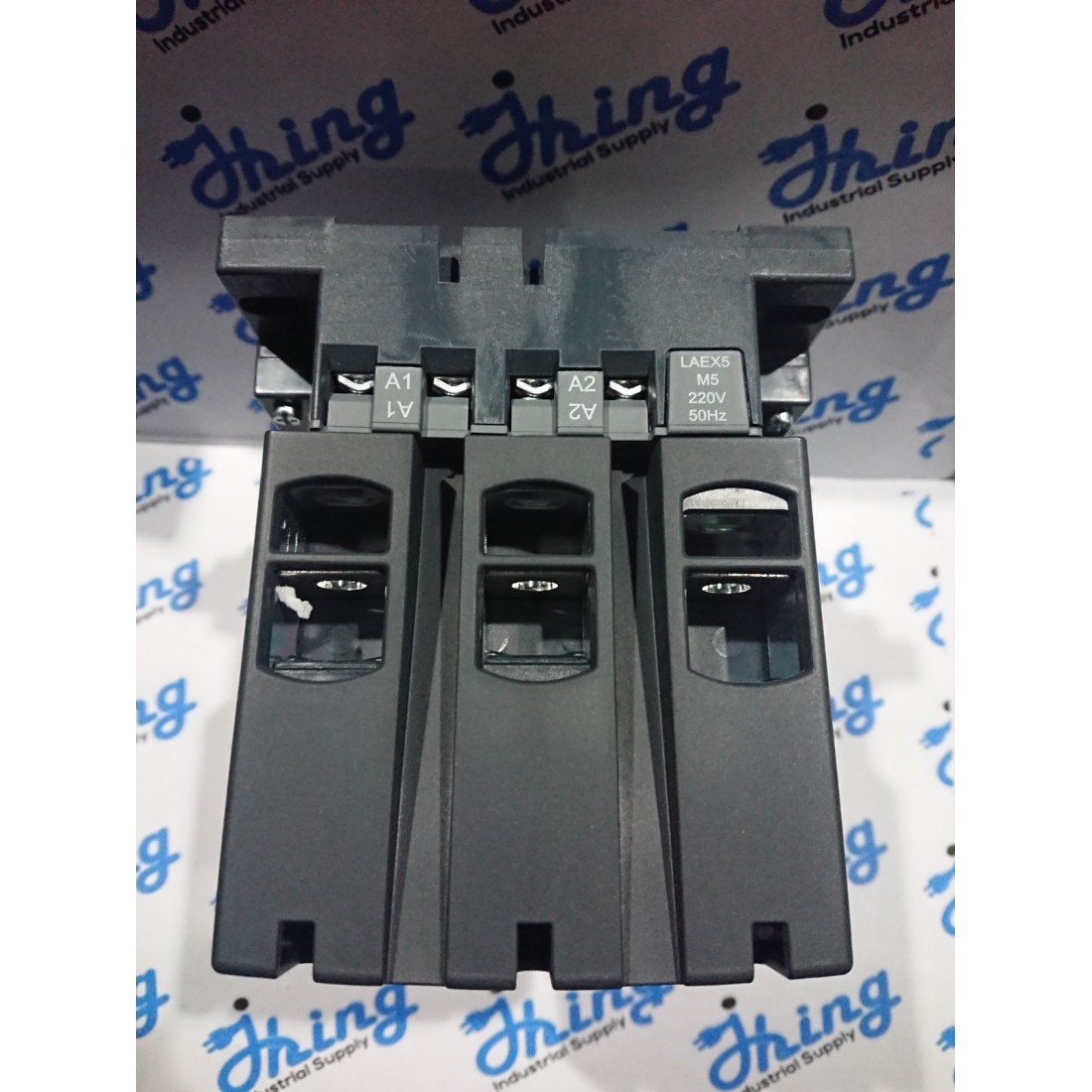

• Coil Voltage: 220 V AC (50 Hz).
• Power Circuit (Ue): Up to 690 V AC max.
• Insulation Rating (Ui): 690 V safety ceiling.
• AC-1 Limit: 150 A max for resistive heating.
• Electrical Life: 800,000 cycles at full load.
• Mechanical Life: 4,000,000 operations frame rating.
• Shock Peak: 10 Gn (closed) / 7 Gn (open).
• Vibration Peak: 3 Gn (closed) / 1.5 Gn (open).
• Max Altitude: 3,000 meters without power loss.
• Cycling Speed: 1,200 operations per hour max.
• Fire Safety: Plastics survive up to 850 °C.
• Dimensions: Exactly 158 x 120 x 132 mm.
• Total Weight: 2.3 kg net mass.
